Showing Polyline Width in CAD Reader

Drafters often apply different line weights to distinguish reinforcement, electrical, telecommunication, and mechanical lines from the main structural lines. CAD Reader provides the option to show or hide polyline widths, helping users accurately capture snapping points for measurement.

Step-by-Step Guide:

1. Open your CAD file in the CAD Reader application.

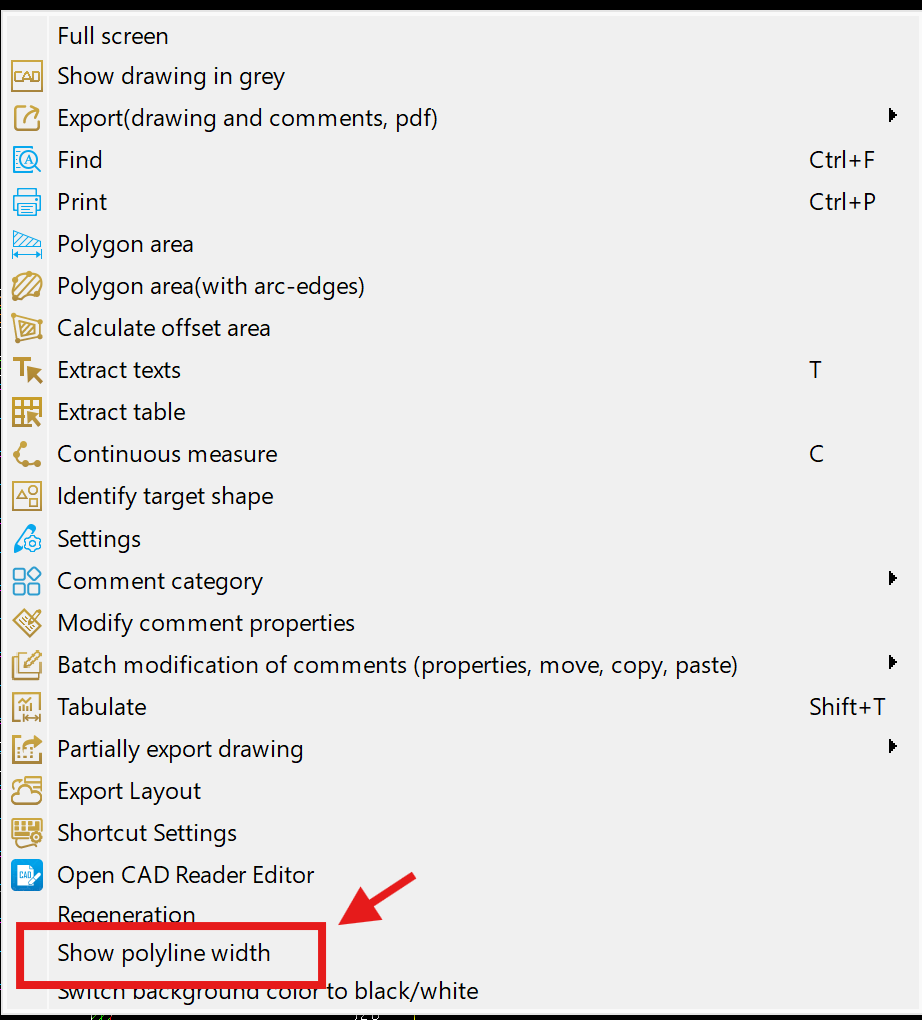

2. Right click anywhere on the drawing screen.

3. From the menu, select “Show Polyline Width.’’

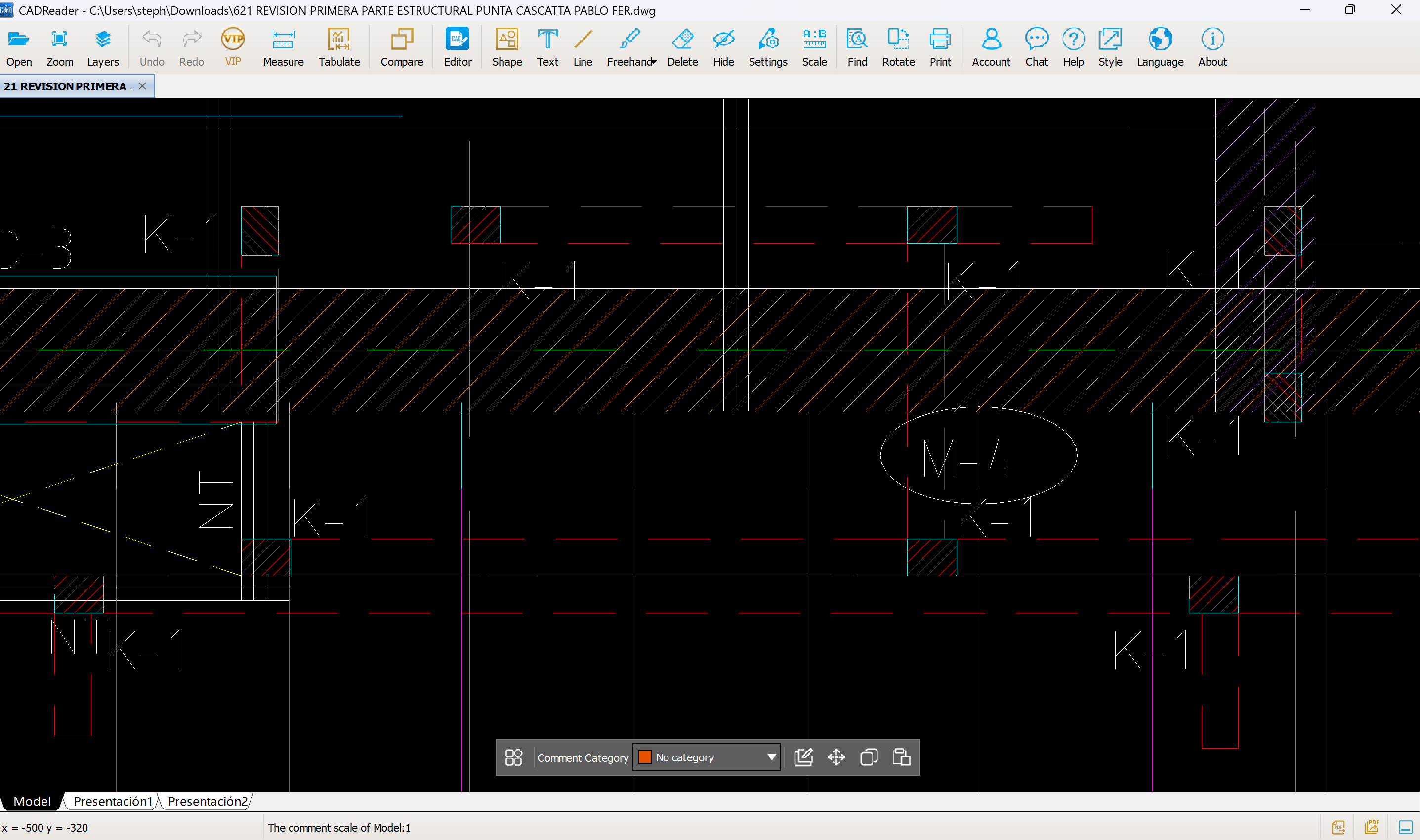

4. Before Show Polyline Width

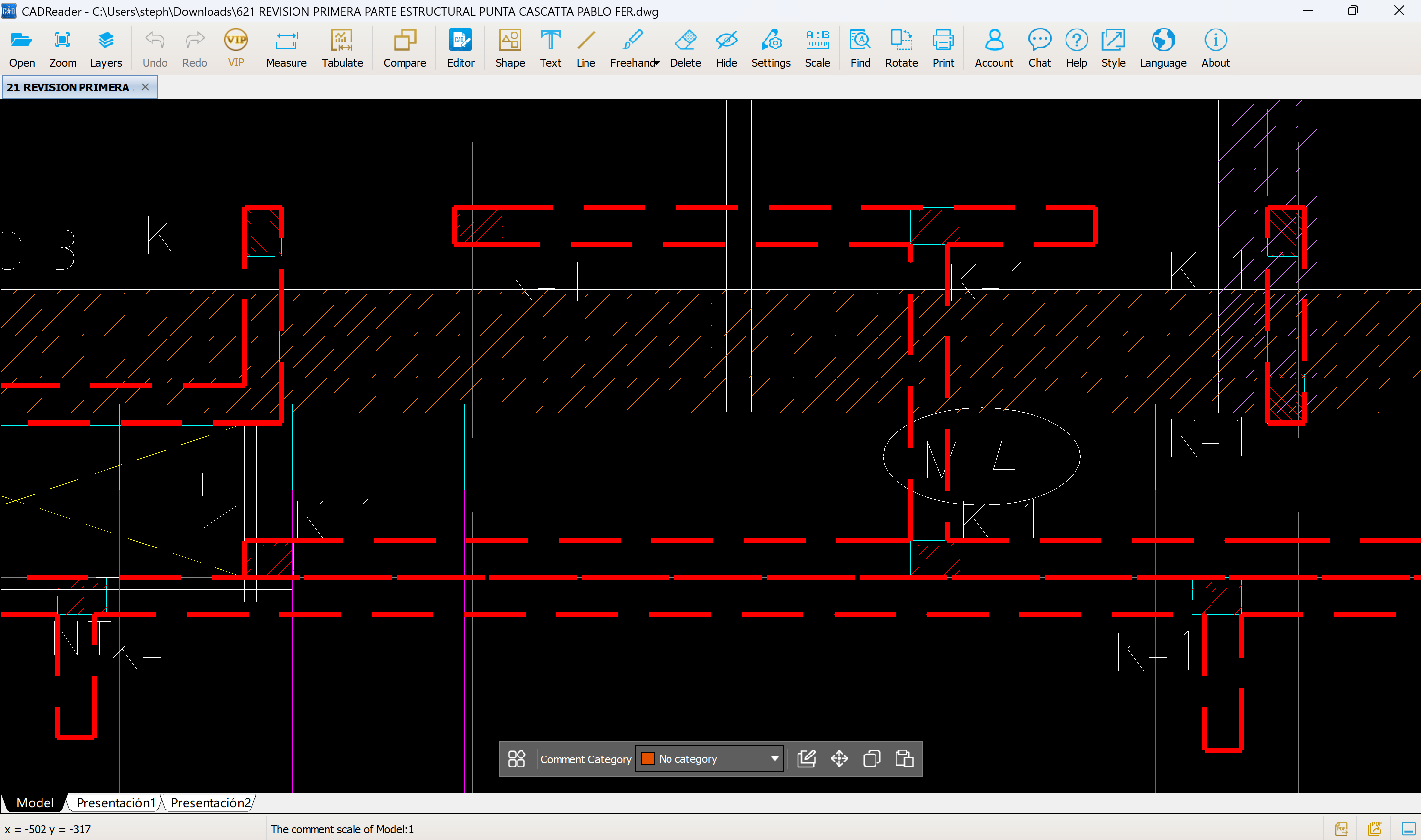

5. Aftter Show Polyline Width
