How to Insert Text Sequence Auto-Numbering in a CAD Drawing?

1. Open your CAD drawing in CAD Reader.

2. From the menu, click on Drawing Tools.

3. Select the Sequence feature.

4. Insert the desired text object (e.g., “Room”).

5. Define the numbering settings:

a) Set the starting number.

b) Choose whether to add a prefix (before the text) or a suffix (after the text).

6. Confirm your settings, then use the virtual mouse to place the auto-numbered text anywhere in the drawing

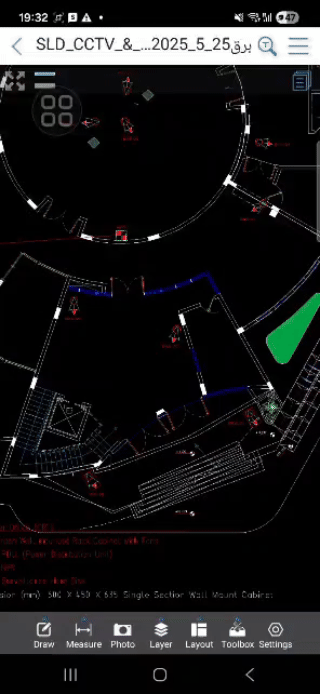

Animated Demonstration:
