How to Measure the Radius in a CAD Drawing?

1. Click on the ‘Measure’ tool.

2. From the options, select ‘Radius’.

3. Left click on any curved line or circular shape in the CAD drawing.

4. The radius will be displayed automatically.

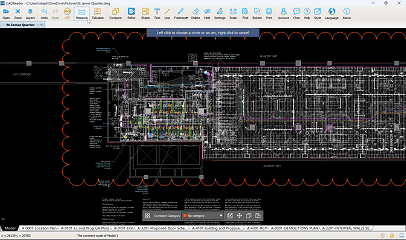

Animated demonstration:
