How to markup Cloud Line in CAD Reader?

1. Open the CAD Drawing

Launch your desired CAD drawing file in CAD Reader.

2. Access the Drawing Tools

On the toolbar, click the 'Freehand' tool.

3. Choose a Shape Tool

From the drop-down menu, select one of the following options:

• Rectangle

• Ellipse

• Freehand

• Cloud Line

• Leader

4. Draw the Cloud line

Use your mouse to freely draw the selected shape directly onto the CAD drawing

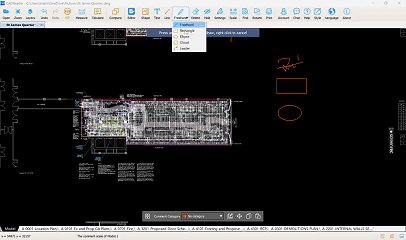

Animated Demonstration:
