Partial Export of CAD Drawings for Product Sales Presentations

When preparing product presentations such as furniture layouts for lecture halls, conference rooms, or theaters, clients or designers often provide CAD drawings that include the full building layout along with landscaping and other unrelated details. For presentation purposes, you may need to isolate and showcase specific areas relevant to your furniture proposal. CAD Reader offers a practical solution by allowing users to partially export drawings. This feature enables you to crop and zoom in on the target area, helping you highlight your layout proposal clearly and professionally without displaying unnecessary portions of the drawing.

Step-by-Step Guide

1. Launch your drawing in CAD Reader.
2. Move your cursor to the toolbar and click on the ‘Editor’ feature.
3. Select the ‘Explode’ function from the toolbar, then use your cursor to draw a selection box around the entire drawing.
4. Right-click to confirm and complete the explode operation.
5. Click ‘Save‘ to apply the changes to your drawing.
6. Exit the Editor window mode.
7. Move your cursor to the toolbar and select the ‘VIP‘ feature.
8. From the drop-down menu, choose ‘Partially Export Drawing‘.
9. Click ‘Select Area‘, then draw a selection box around the region you wish to export.
10. Click the ‘Export’ button, choose your desired save location, and click Save to complete the export.

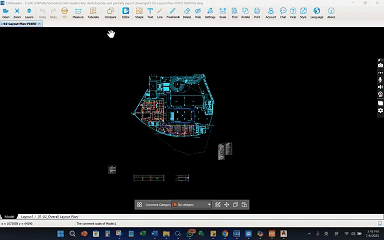

Animated Demonstration:
