How to extract multiple CAD drawings contained in one file and save each as an individual file on macOS?
- Launch the CAD drawing on CAD Reader.
- Select ‘Partially Export Drawing’ from the ‘VIP’ drop-down menu.
- Click ‘Select Area’ and draw a selection box around the area you want to export.
- Click the ‘Convert’ button, choose a save location, rename the file, and complete the export.
- Repeat steps 3 and 4 for each additional drawing you want to extract and save separately.

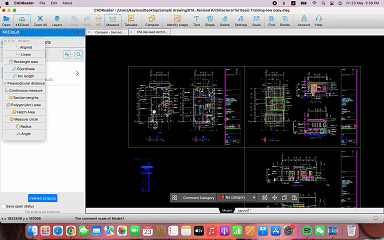

Animated Demonstration:
