How to convert a CAD drawing to PDF on macOS?

1) Open the CAD drawing using CAD Reader.

2) Go to the ‘VIP’ section in the toolbar.

3) From the drop-down menu, select ‘Export PDF’.

4) Configure the export settings, such as:

• Paper size
• Orientation
• Export color
• Line width

5) Option to include comments on the drawing

6) Click ‘Select export area’ and use your cursor to draw a selection box around the area you want to export.

7) Click the ‘Export’ button, choose a save location, and complete the export.

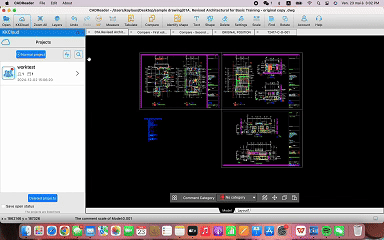

Animated Demonstration:
