How to extract multiple CAD drawings contained in one file and save each as an individual file?
- Launch the drawing using CAD Reader.
- From the ‘VIP’ drop-down menu, select ‘Partially Export Drawing’.
- Click ‘Select Area’ and draw a box around the area you want to export.
- Click the ‘Export’ button to rename the file, update the CAD revision (if needed), and choose the save location.
- Repeat steps 3 and 4 for each additional drawing you want to extract and save separately.

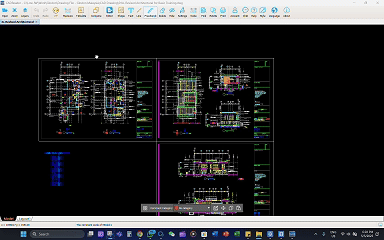

Animated Demonstration:
