How to Quickly Verify Equipment Quantities in a PDF drawing

Free Download PlanForm (Windows/Mac) :https://pdf.fastcadreader.com

As shown in the figure, this PDF drawing contains many types of equipment. How can you quickly locate each piece of equipment

and verify if the quantities of different-sized equipment are accurate?

Today, I’ll teach you a simple method:

First, use PlanForm to open the drawing.

Click on Search, then select Search Text.

 Input the equipment name here.

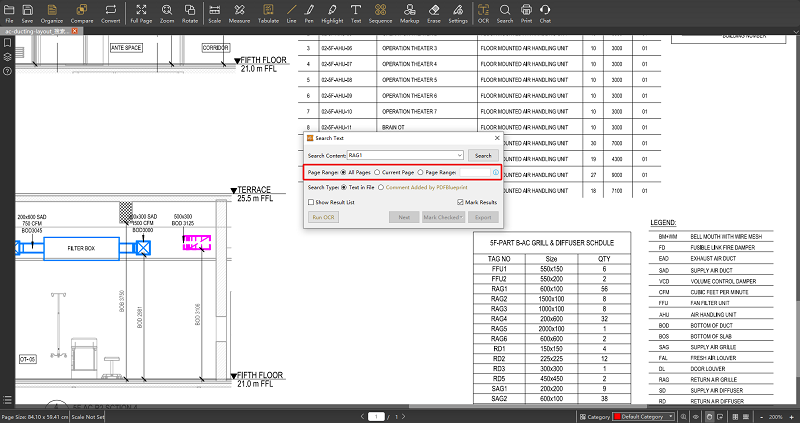

If the PDF has multiple pages, you can specify the page range to search.

Once everything is set, click Search.

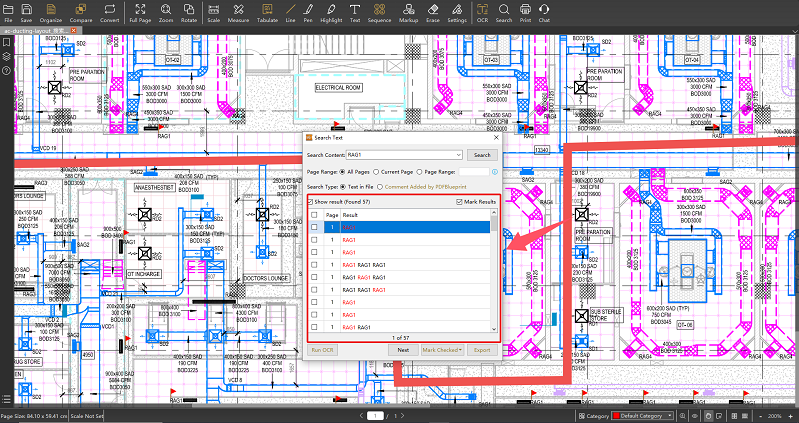

 In just one second, all instances of the equipment will be retrieved.

 Click on the equipment name, and it will automatically jump to its location on the blueprint, making it easy to verify accuracy.

Checkmark the correct ones, and use the counting feature to tally all equipment at once. You can also choose colors and shapes

to mark the equipment, simplifying the final quantity summary.

You can export the search results to Excel with one click.

This feature significantly improves work efficiency. Download the software and give it a try!
